Description

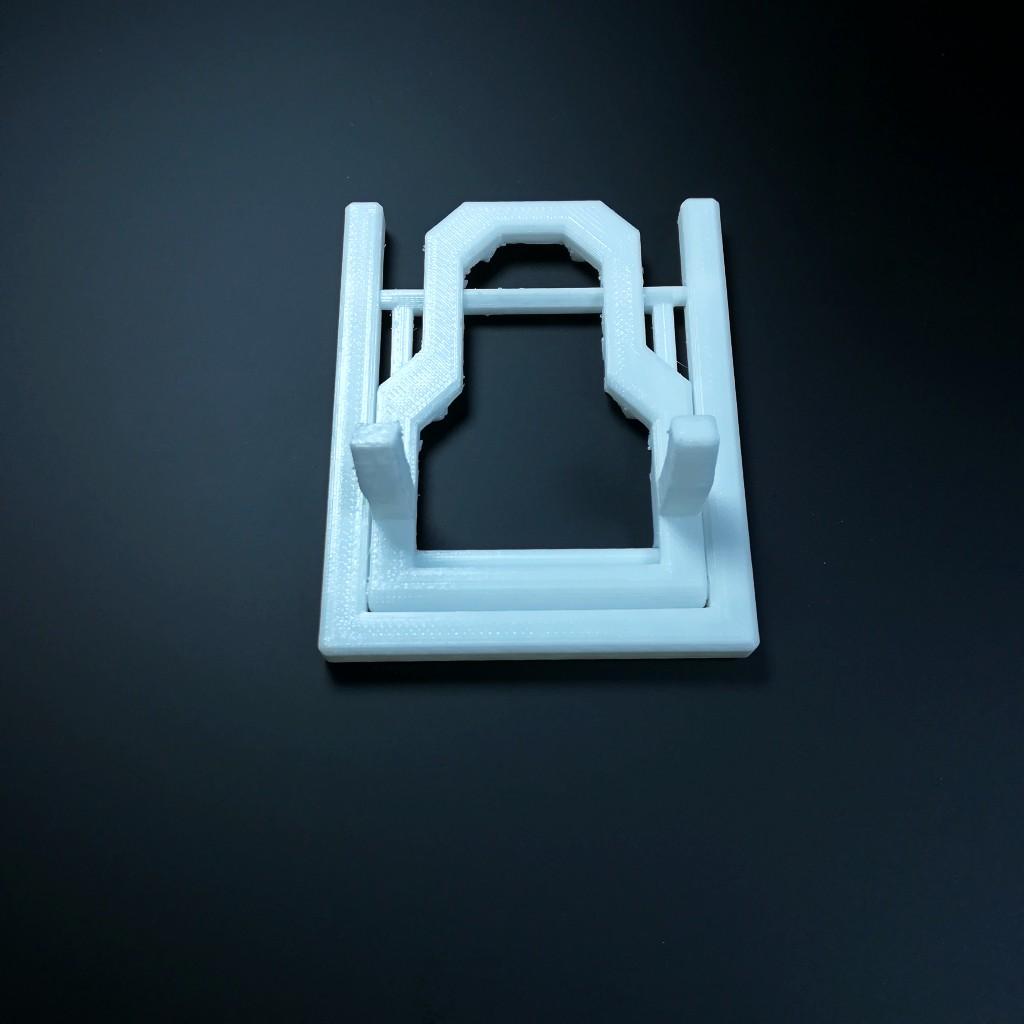

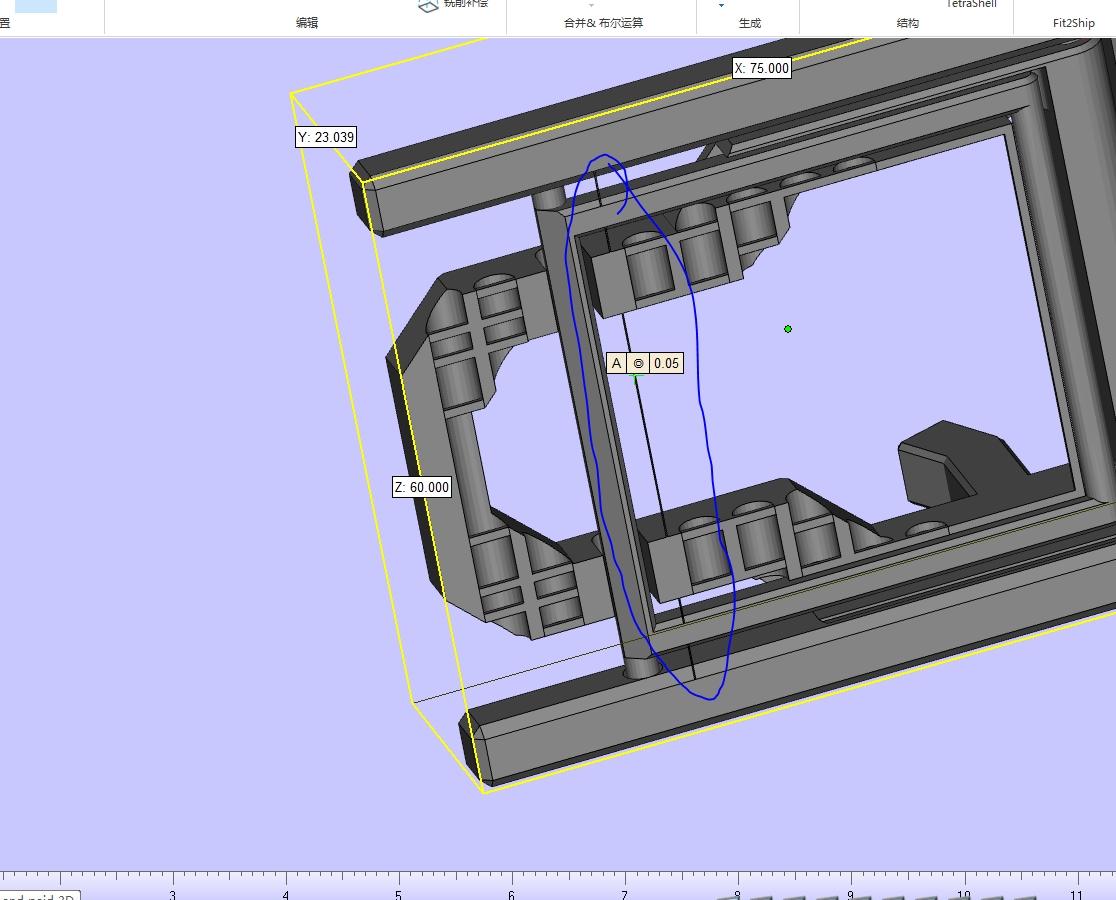

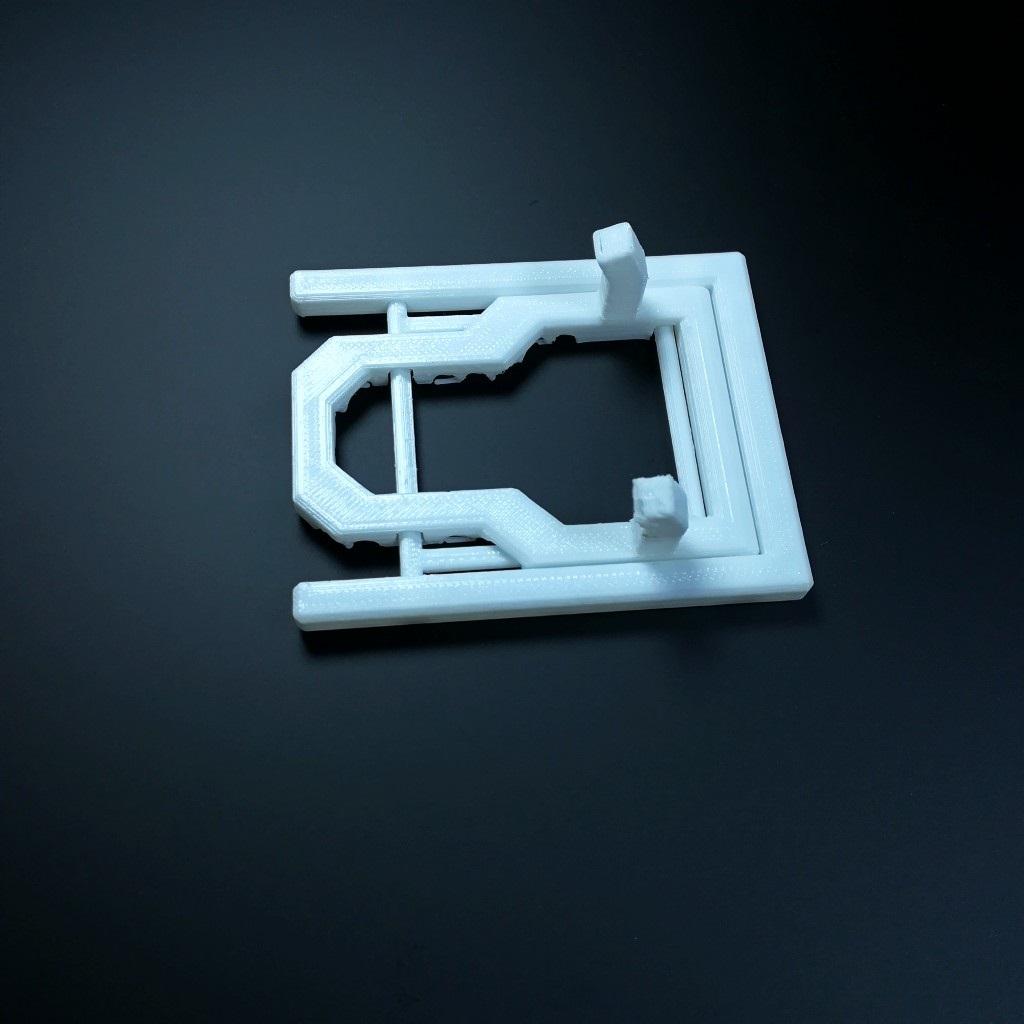

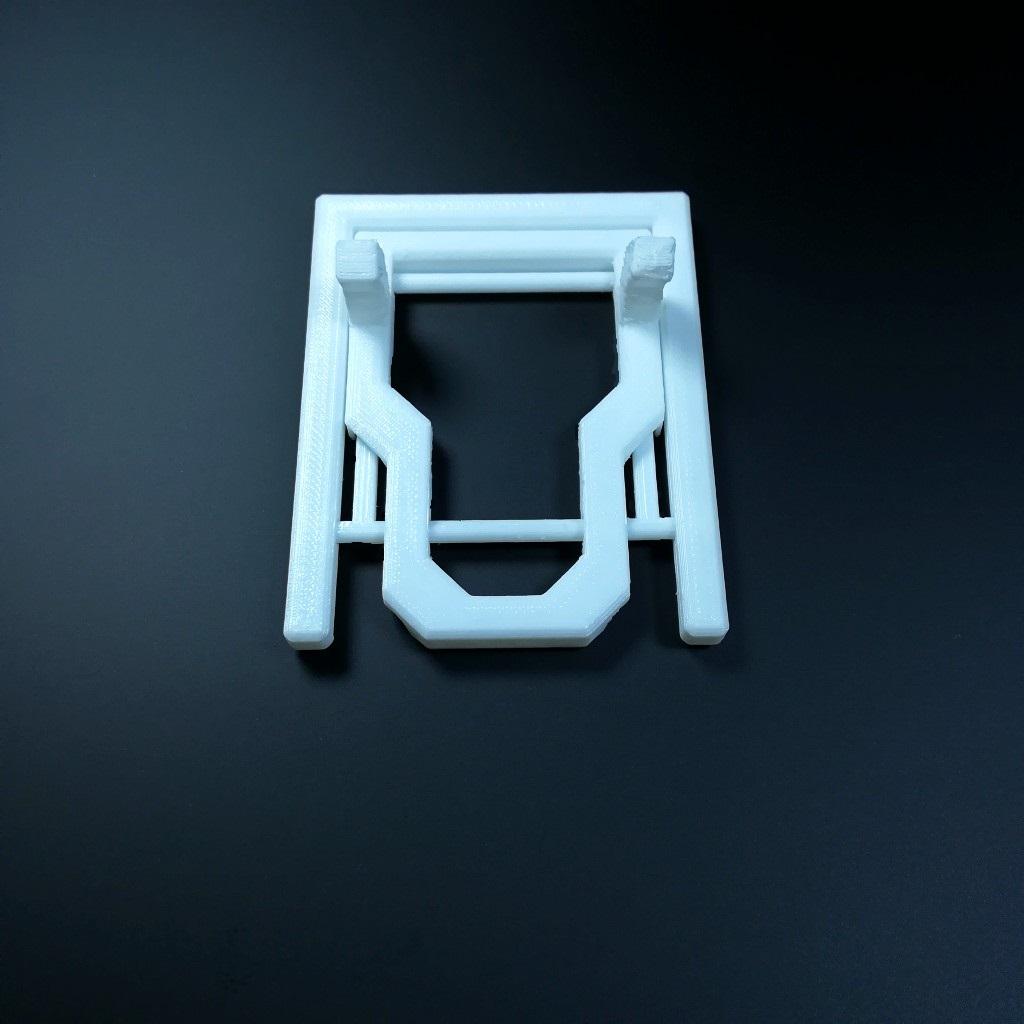

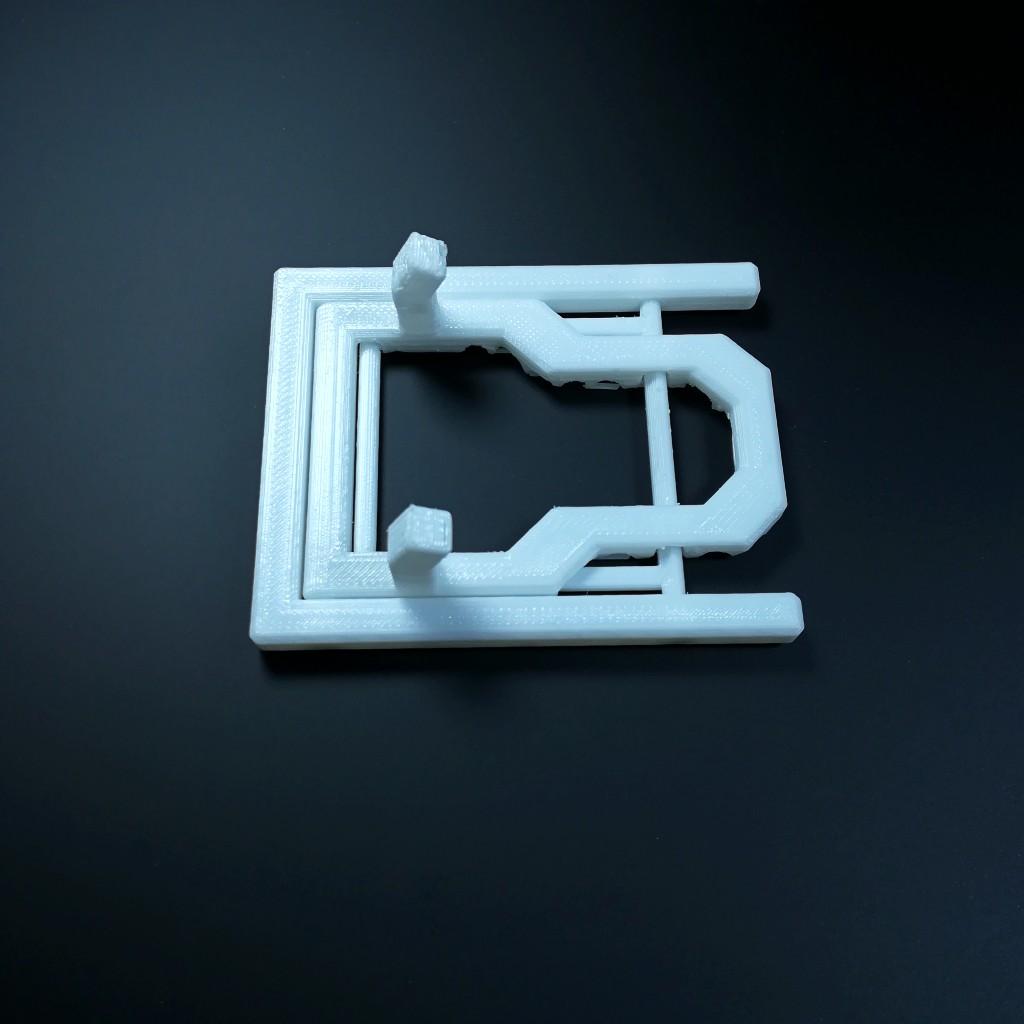

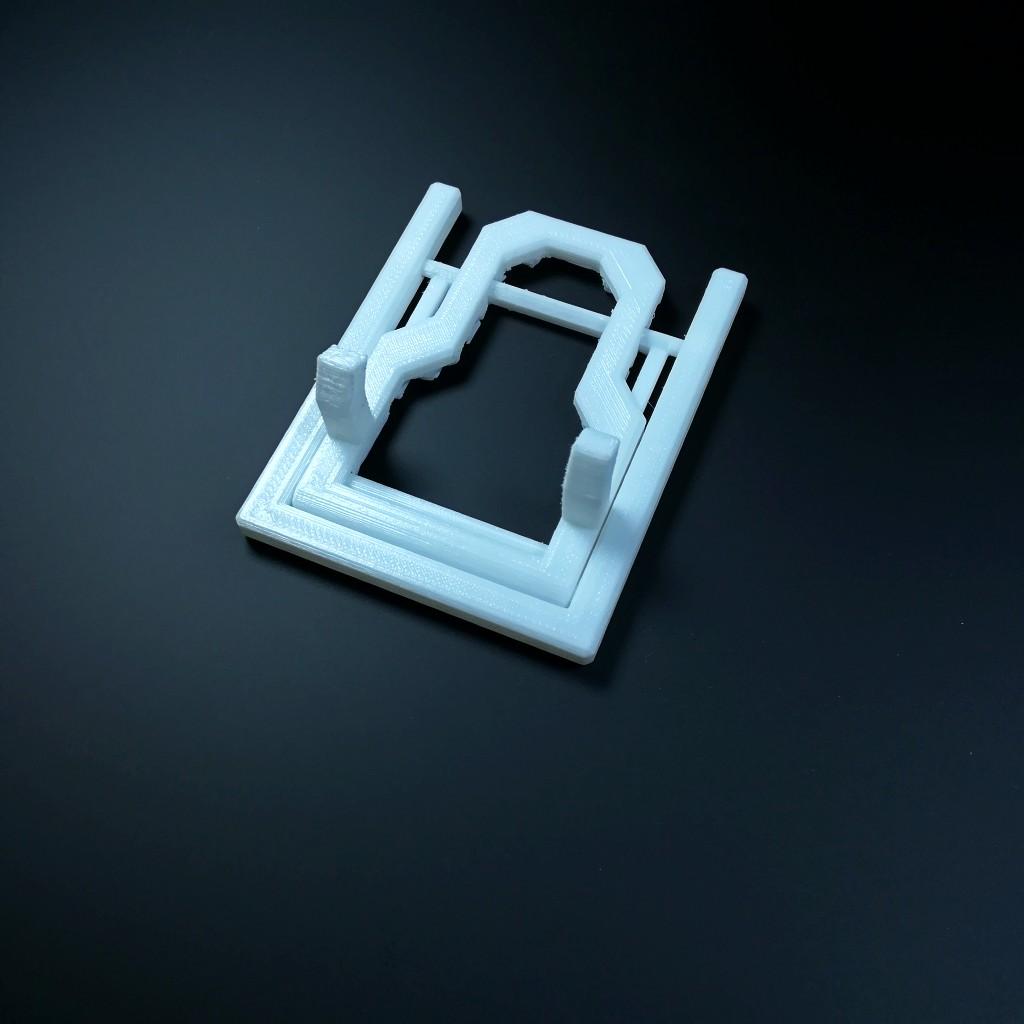

This is an adjustable universal phone stand I designed in Fusion 360.
It is able to hold basically every cellphone in 8 different positions ranging from about 45 to 80 degrees.
Printing Details
Print at 0.2 mm layer height with 2 perimeters, 3 bottom and 3 top layers, and 20% infill.
The small parts underneath are to keep everything on the printing bed properly, you will just have to cut them afterwards with an x-acto.
This object was designed for printing with a 0.4 mm nozzle but if you have another nozzle diameter please share the print with me I would love to hear from it !
Technical Information
| Date published | 25/10/2018 |
| Benoetigte Zeit | 68 - 68 Minuten |
| Menge an Filament | 14 grams |
| Dimensionen | 75mm x 60mm x 23mm |
| Technologie | FDM |
| Schwierigkeitsgrad | Easy |
| Support Free | YES |
More Information
Object Parts
please see pics
