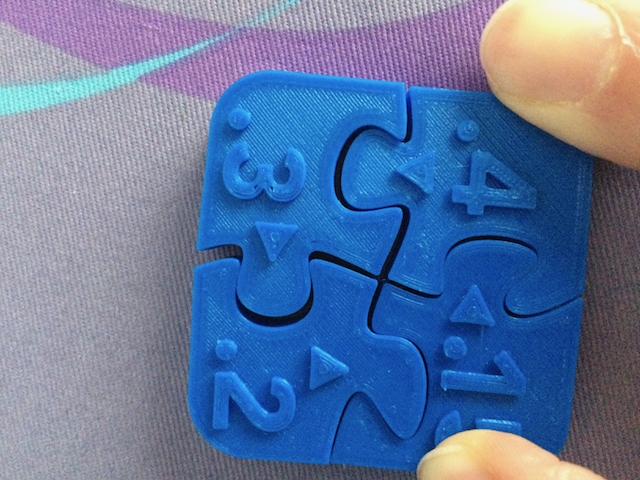

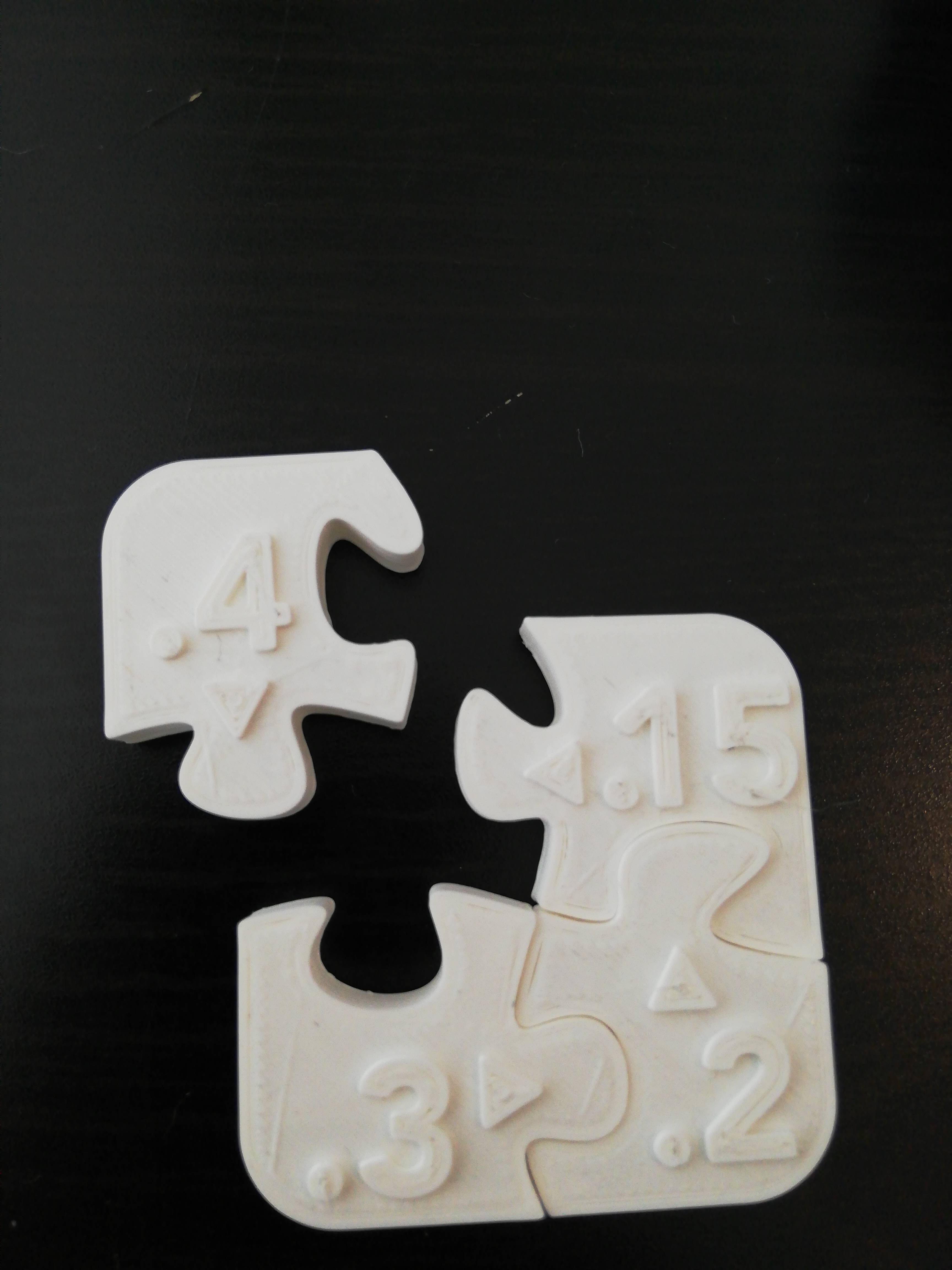

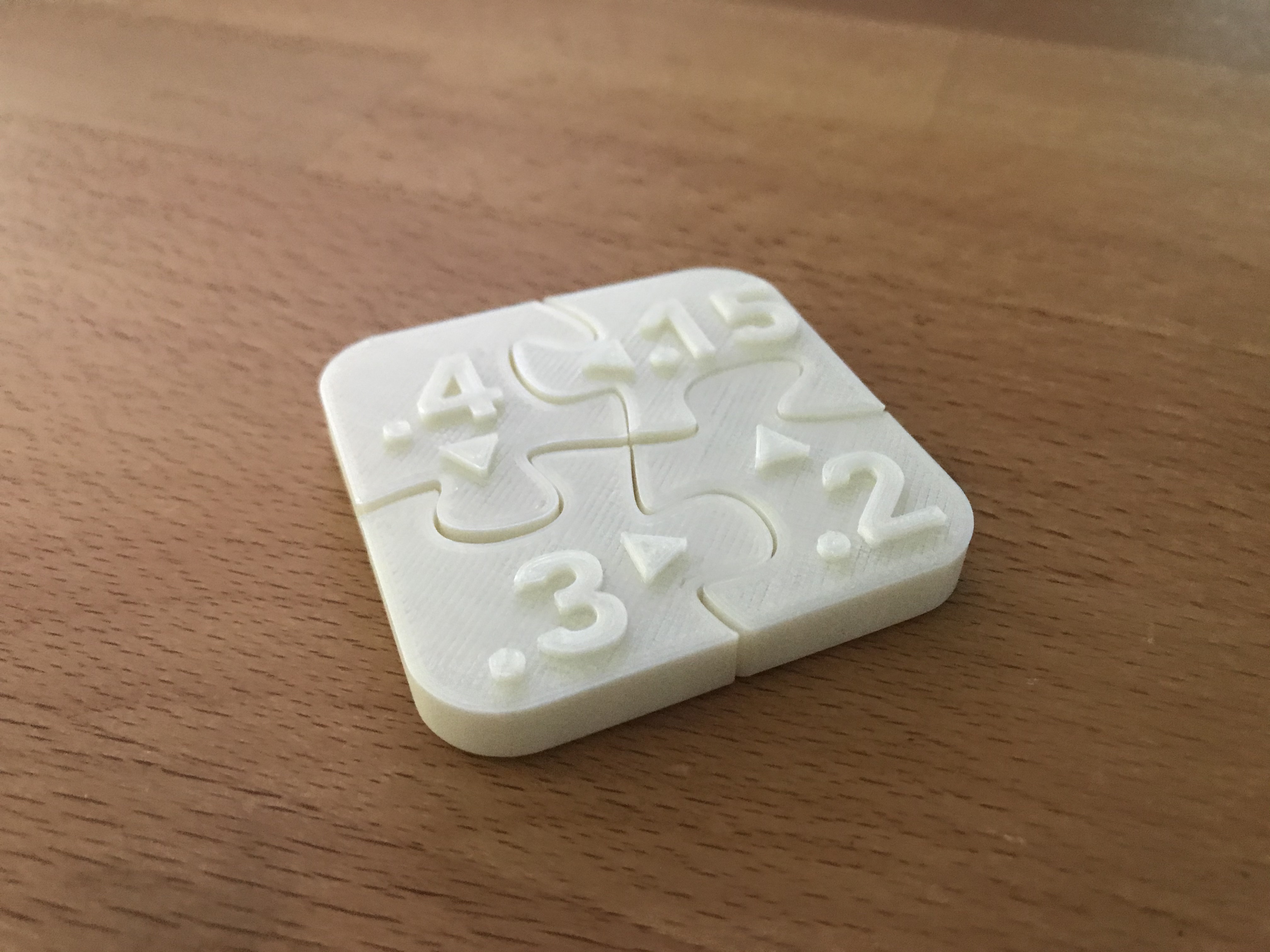

Test your printer's X-Y accuracy with this little puzzle. Each connection has a different clearance, as indicated by the numbers (0.15mm,0.2mm,0.3mm,0.4mm).
I made this to help design my 3D puzzles, but it's useful for designing any parts that fit together. Is your printer able to connect them all?
Lizenz
Technical Information
| Date published | 02/02/2018 |
| Support Free | YES |
More Information
Object Parts
Hi Devin. Thanks for the design. But I printed this on my Anycubic i3 Mega and even the 0.15 clearance test has plenty of play. However, when I model-up my own designs using a 0.15 clearance (body separation), I have nice snug fittings. So I was wondering if your design actually implemented a 0.15mm offset on each face, thereby making the 0.15mm clearance test in fact a 0.3mm face separation / clearance test (as that appears to be more like the part separation that I am seeing)?
