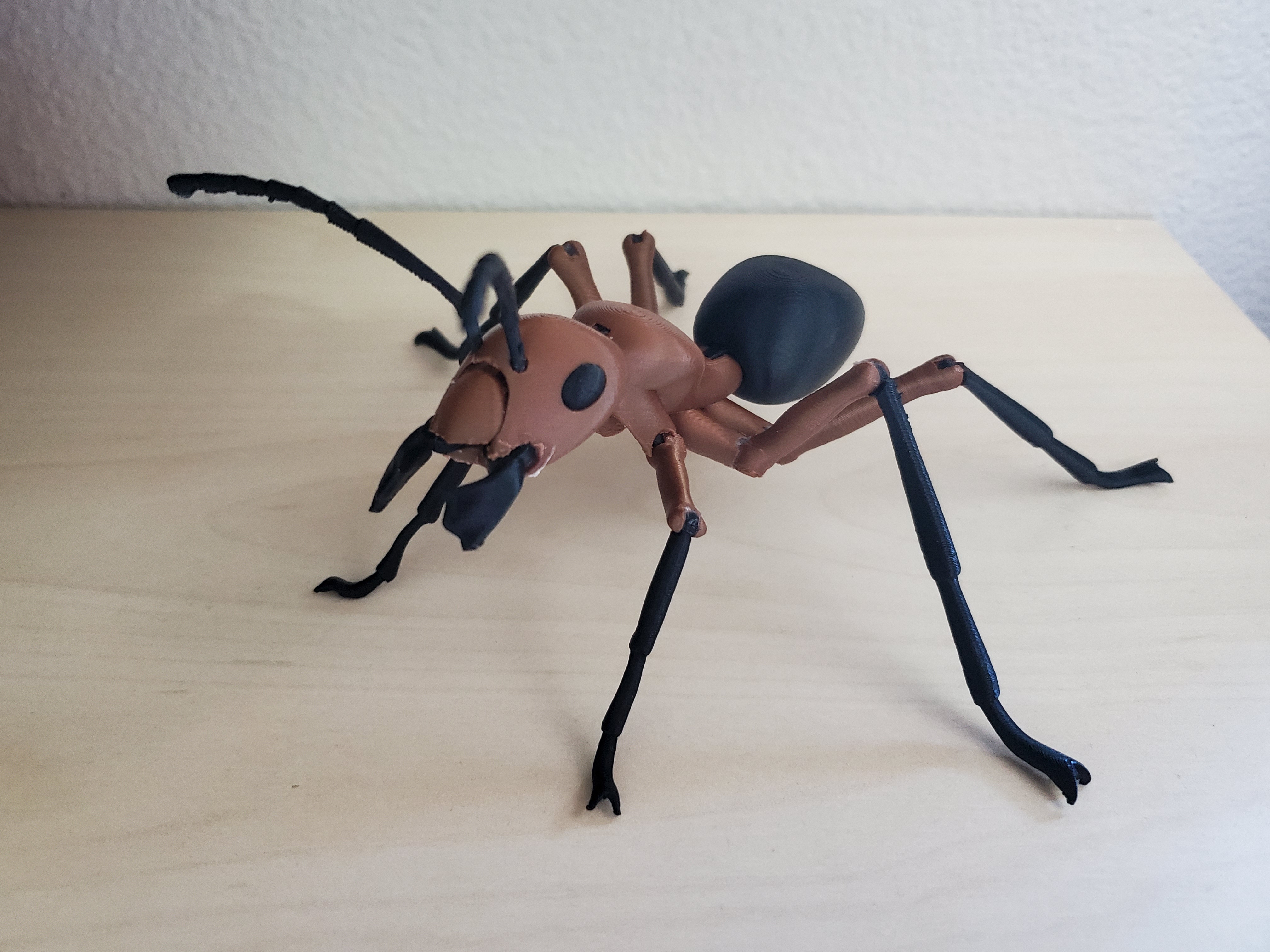

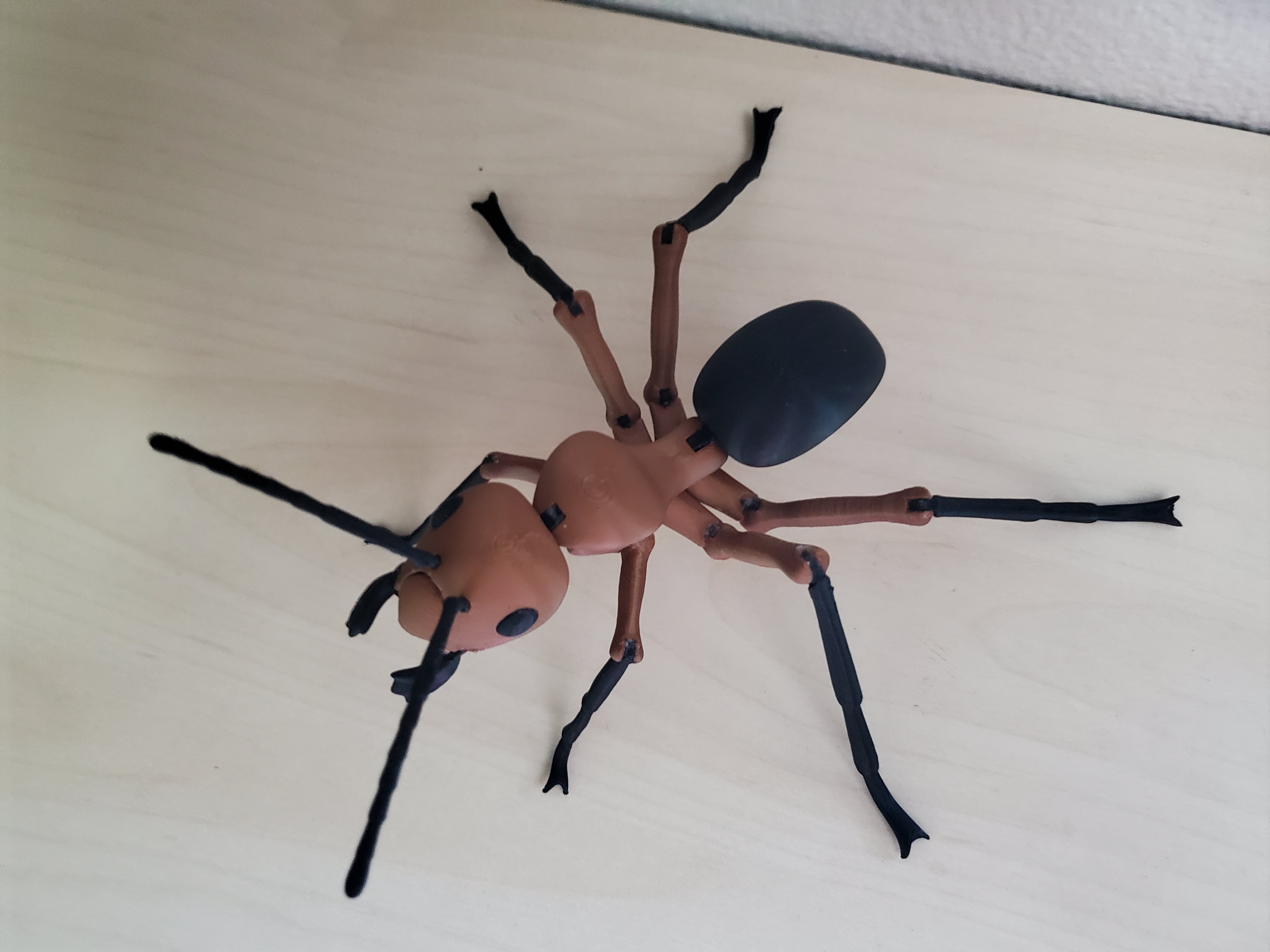

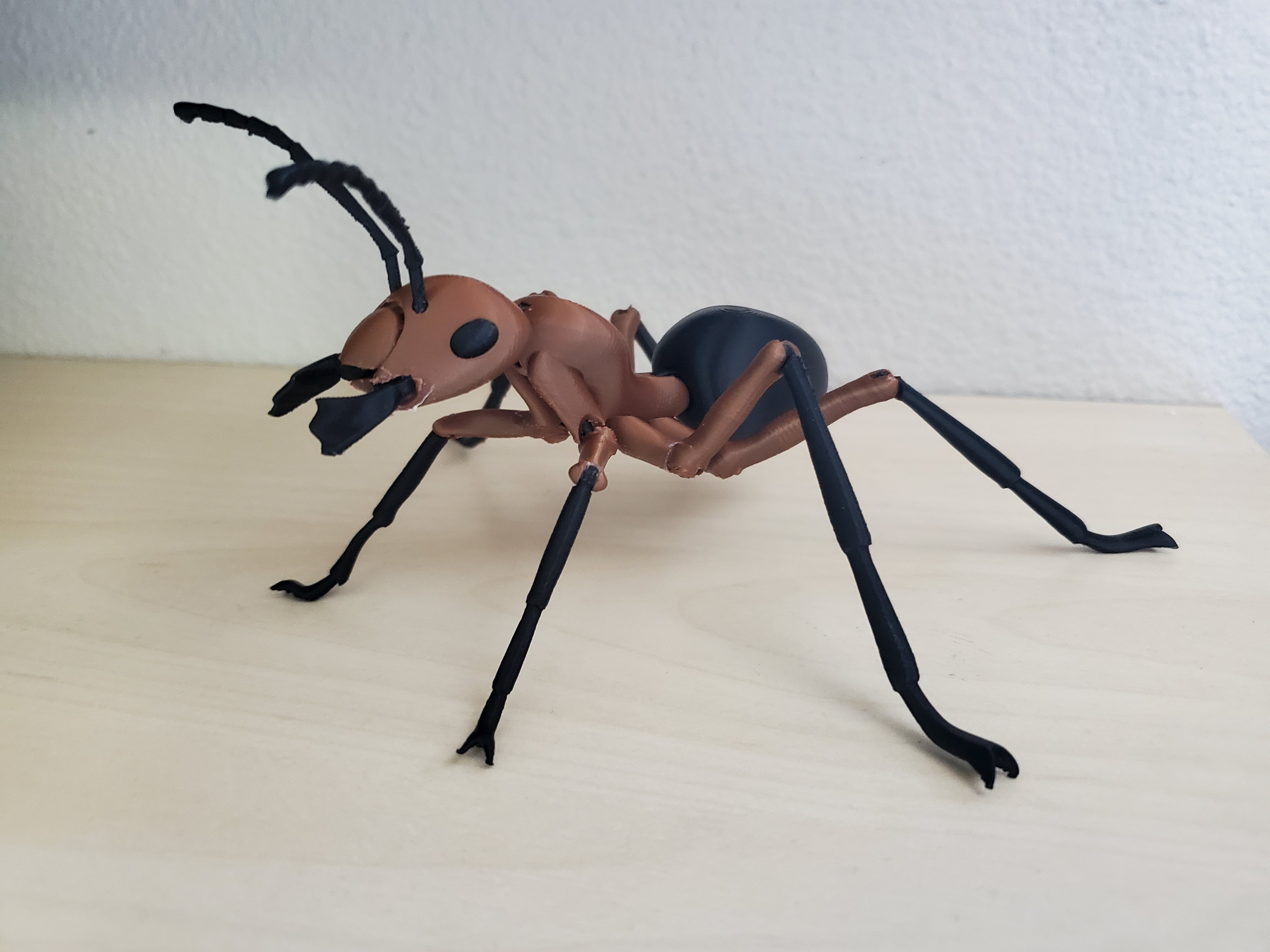

The toy for my daughter Alice.
Big thanks to https://monofilament.com.ua/ for sponsoring this model, you guys are awesome!
During watching good old movie "Honey, I Shrunk The Kids" my daughter were extremely upset when the ant was killed by scorpion. So I decided to create an ant toy in a memory of good buddy ant who died but saved kids.
For toy assembly you will need sharp knife and small file.
During designing I tried to keep real proportions. But this brought at issue: legs should be thin but strong enough... that is why leg joins are pretty tight and require some force to join together.
The beset way to join them is to send/extend a groove (check neсk.stl) and other outer part then apply some force. But pay attention, too much force can break the part.
I would recommend print legs twice to have spare parts.
Things to print with brown:
leg_1_b.stl (copy and mirror)
leg_2_b.stl (copy and mirror)
leg_3_b.stl (copy and mirror)
leg_holder.stl (6 pc)
Things to print with black:
eye_left.stl (2 pc)
leg_1_c.stl (copy and mirror)
leg_2_c.stl (copy and mirror)
leg_3_c.stl (copy and mirror)
tooth_left.stl (copy and mirror)
us_left.stl (copy and mirror)
