Green Dragon 01
$12.00 Green Dragon 01
3D
Published 2020-11-09T12:42:33+00:00
86
3
Add to Collection
Description
This mini is part of the Slave River Guild: Slaver Camp pack
Pre-supported STL files included for Resin Printing • Editable Chitubox Files included • Unsupported STL Files included • Separated Mini Bases • Designed for 28mm • Optmized STLs • Print QC: Triple Print Tested • Product Profile PDF included
See our Tribe for subscription options.
Technical Information
| Date published | 09/11/2020 |
| Price | $12.00 |
More Information
Object Parts

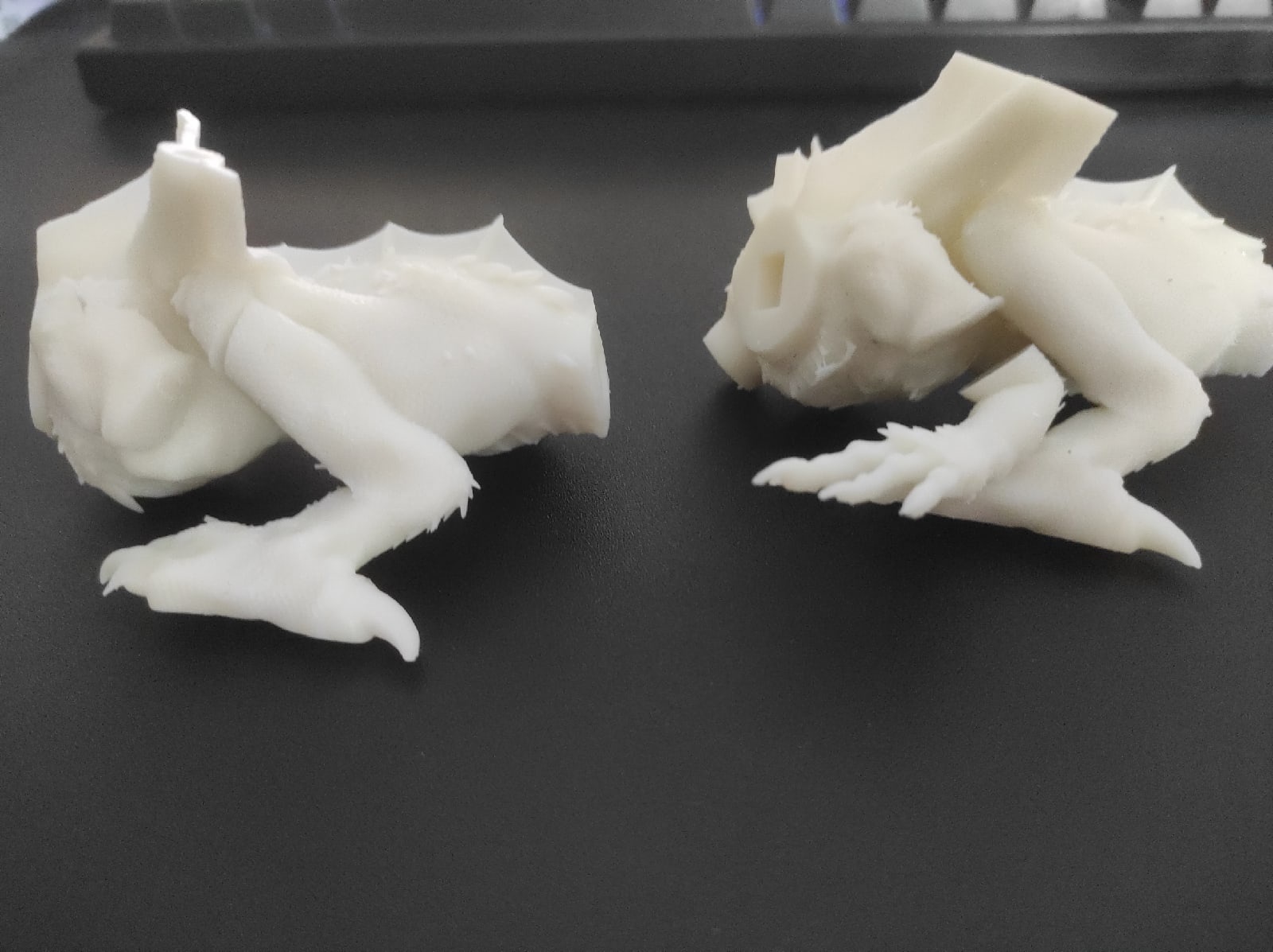

I ran in to some issues while printing the first part(main body). I had 3 attempts to print it. Each one failed at the same point. I have only 2 last prints, I threw the first one away. So here they are. They failed on the left paw. The left one in the picture is the pre-supported model that is placed 90 degrees vertically. It had ripped apart at some points and the paw itself went flat as a pancake. I decided to put custom supports and tur the model 45 degrees to distribute the weight more efficiently so that it will not mess the supports under it's own weight. It failed in the same place but now printed out the bottom part of the paw. I didn't take a picture of both models with supports, but the supports do print, but and reach that place, which fails, but it's like they hang there like that chunk should be in place. First time I used Photon workshop and sliced the pre-supported file. Second time Lychee. Third time created custom supports in chitubox and sliced in Photon again. The head and the tail printed perfectly.
