Medium Crazy Gear Desk Clock
$12.00 Medium Crazy Gear Desk Clock
Published 2023-04-20T08:11:42+00:00
This is a medium size clock in a series called "Crazy Gear Desk Clocks". The gears are continually in motion providing a very striking look. The clock operates silently with a typical accuracy of better than one second per month.

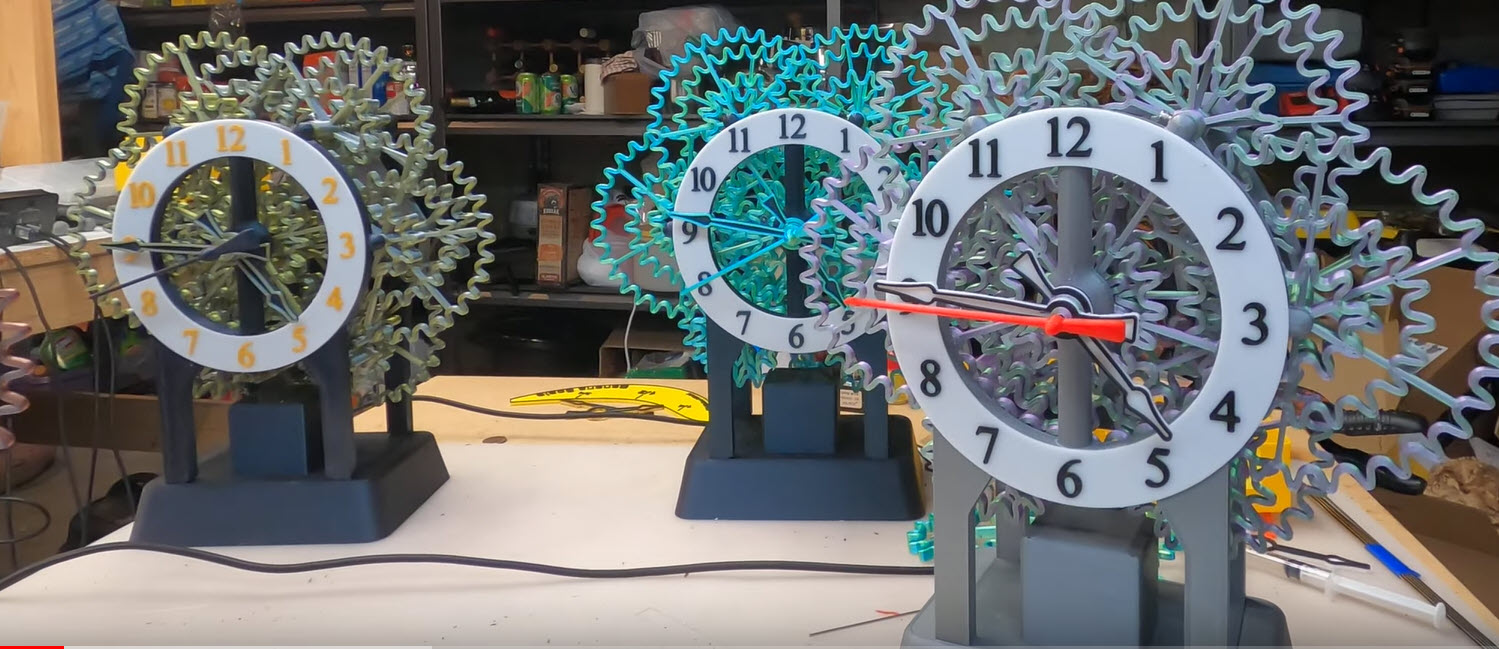

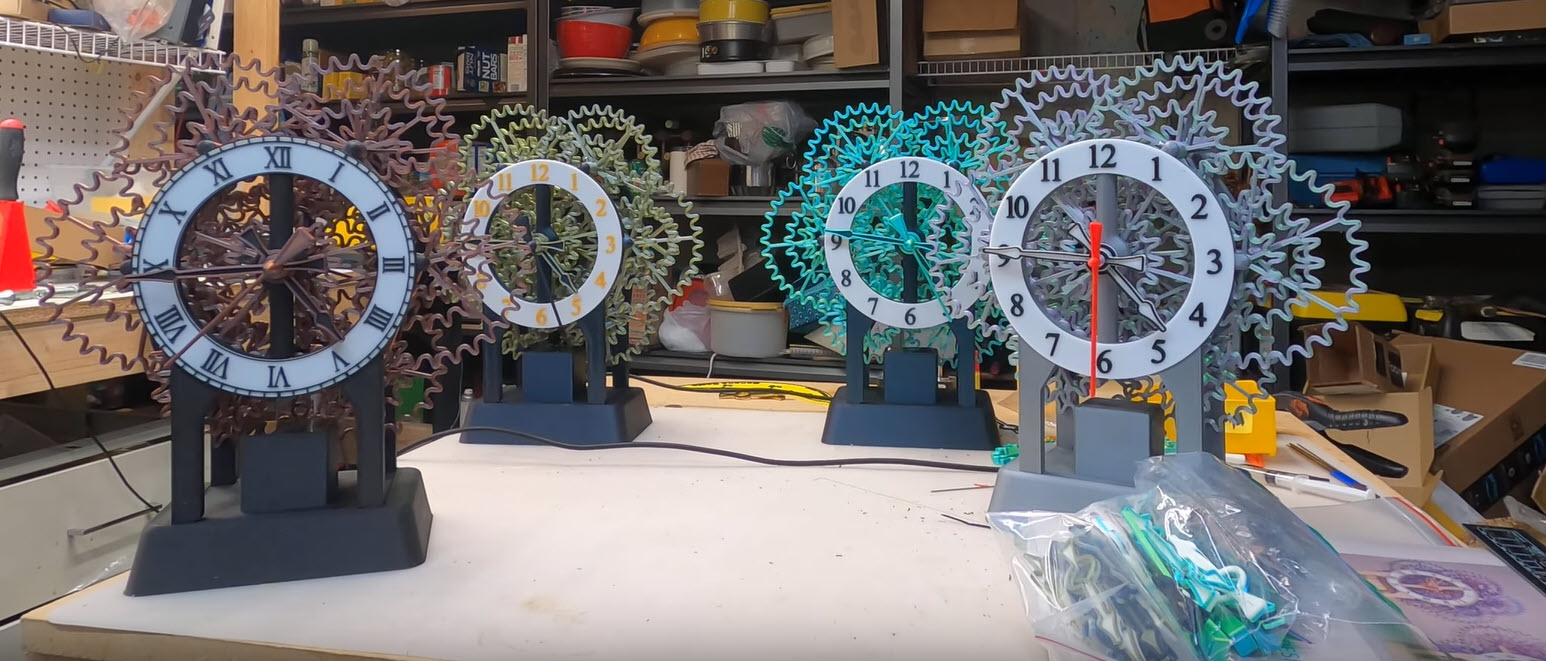

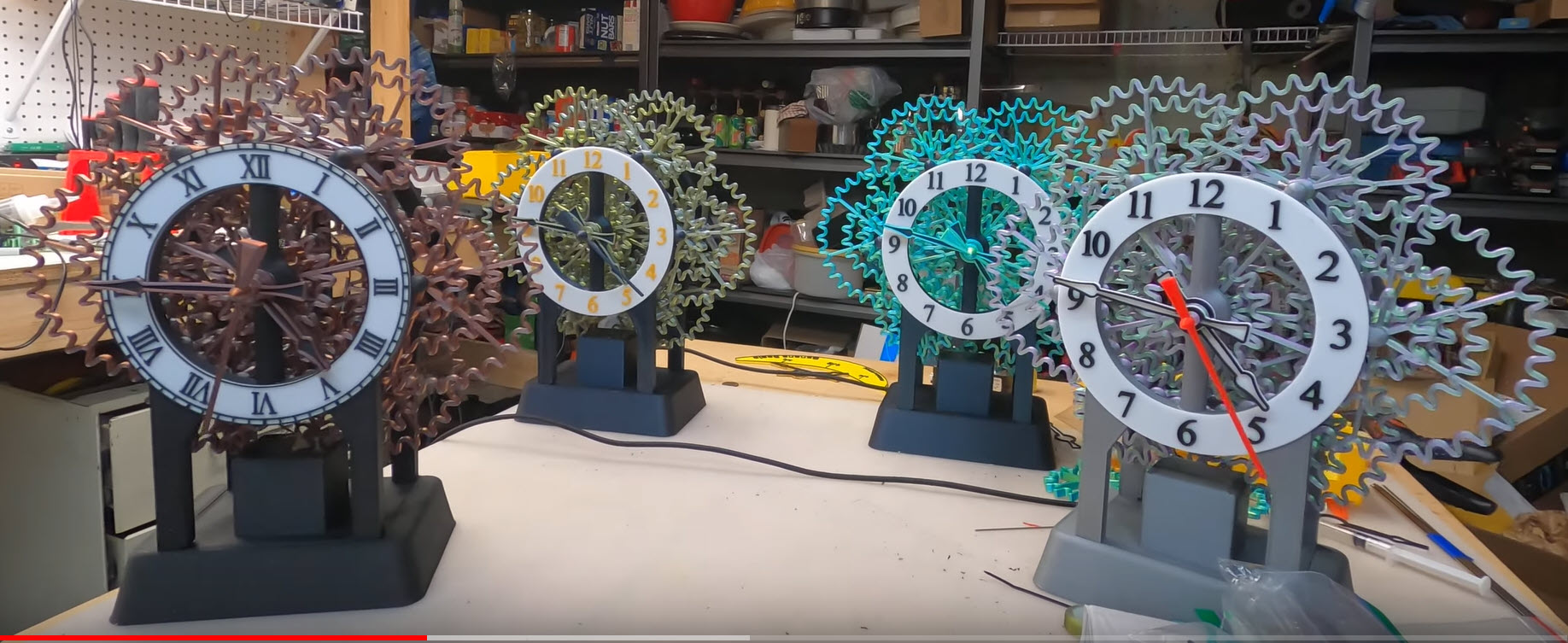

A video of the larger version of this clock is at https://www.youtube.com/shorts/ReKnLMyxin4
Additional videos showing assembly steps are coming soon.
The overall size is 11.75" by 12.75" (300x325mm). Total print time is around 74 hours on a Prusa MK3S using 0.8kg of PLA. The largest component will fit on a Prusa Mini or any machine with at least a 175x175mm print area.

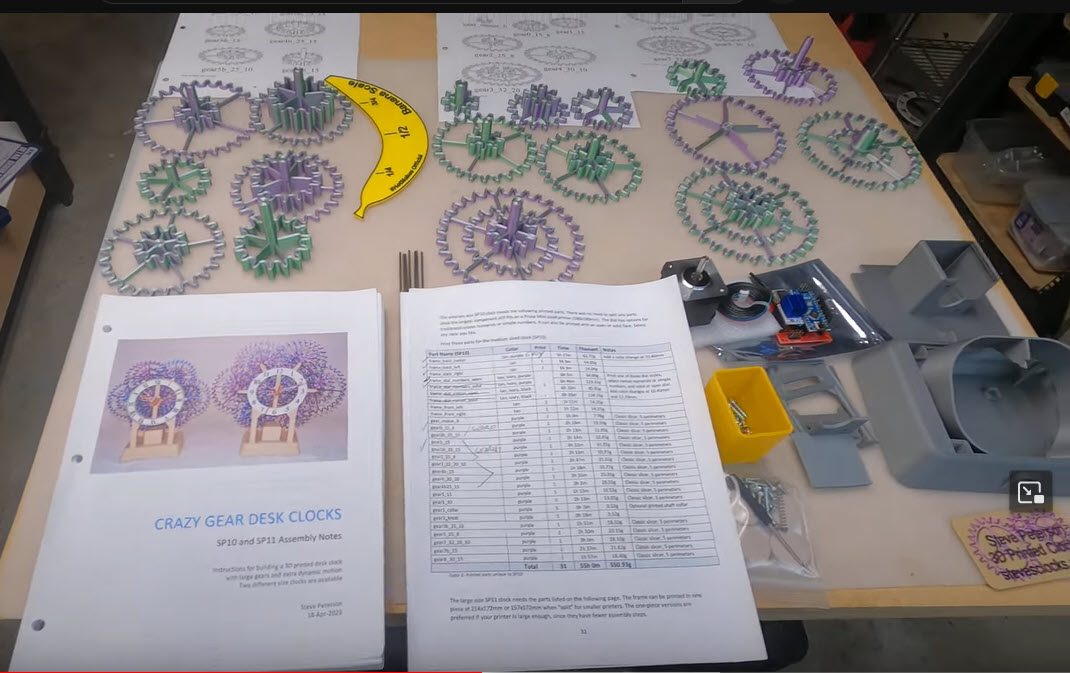

The assembly guide showing the complete build instructions can be downloaded before purchase at https://www.stevesclocks.com/sp10
The primary non-printed components are:
CNC Shield V4 or Silent Shield Clock Controller (Etsy)
Ardiuno Nano
TMC2208 stepper motor driver
DS3231 precision real time clock
NEMA17 stepper motor (0.9 degree step size is preferred)
1/16" or 1.5mm music wire
#6x3/4" or M3.5x20mm flat head wood screws
M3x8mm screws
All of the parts are available on Amazon or other standard sources. The Silent Shield Clock Controller is a custom clock control board on Etsy at https://www.etsy.com/listing/1464560995 It is available in kit form, partially assembled, or fully assembled. A cheaper option is a modified version of the CNC Shield V4 controller. Instructions are in the assembly guide.
Use the forum at https://www.stevesclocks.com/forum to discuss clock making topics or assembly issues. There is a sub-forum set up specifically for electric clocks.

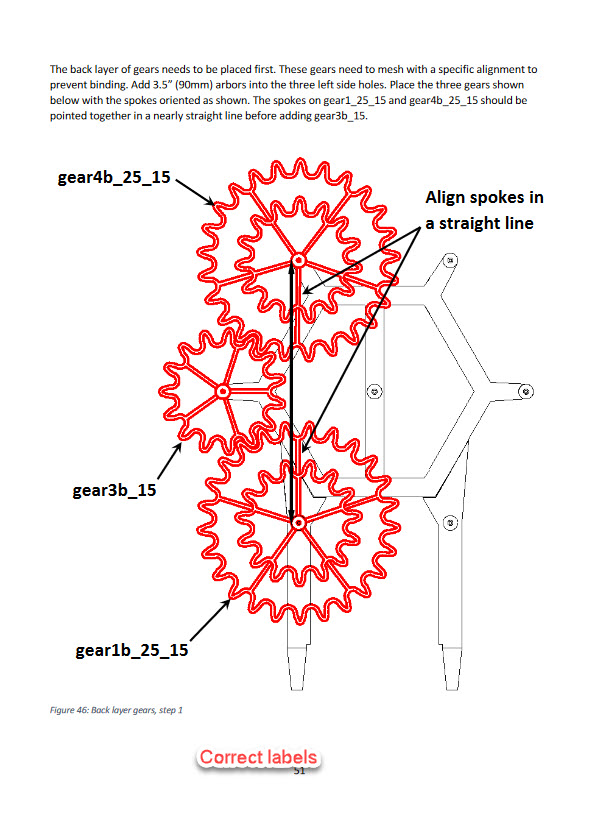

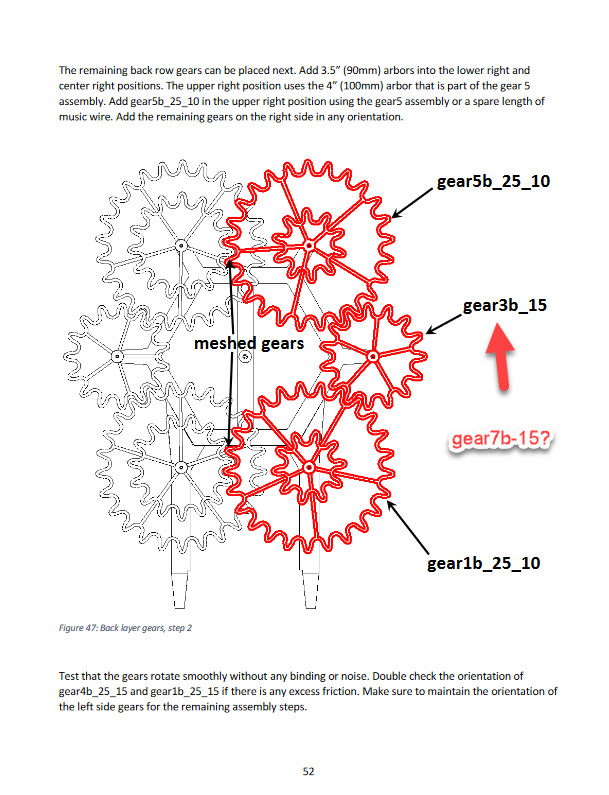

14-May-23 Update: Fixed a typo in the assembly guide and added a few additional diagrams. Typically, the most up-to-date assembly guide can always be downloaded from https://www.stevesclocks.com/sp10

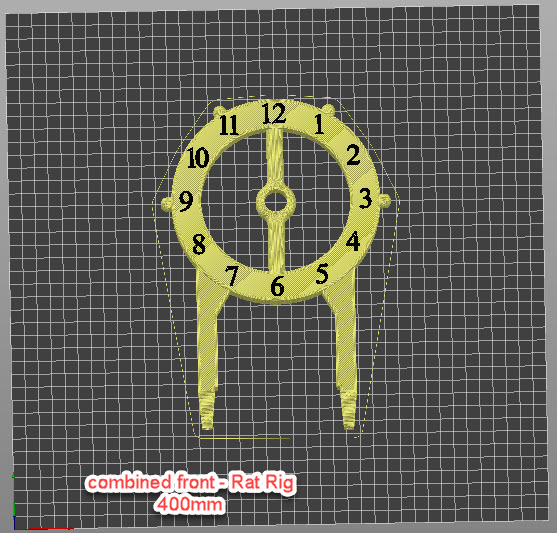

17-May-23 Update: Added optional frame components with the legs merged into the center component. The file names are frame_*_merged.stl. They are not described in the assembly guide, but the steps should be obvious. The legs are pre-attached so the assembly steps to add the legs are no longer needed. They will need a printer with a 260x180mm print area.
Date published | 20/04/2023 |
Price | $12.00 |
Support Free | YES |
printed on Bambu X1 Carbon and Rat Rig
